Flat Tops
Description
- Flat tops pins made out of Special grade oil tempered steel with high fatigue properties.
- Tips are extra hardened in advanced HAQ - method (Hydrogen fuel flaming and cryogenic quenching).
- This advance treatment keeps the flat tops naturally clean, due to smooth surface finish.

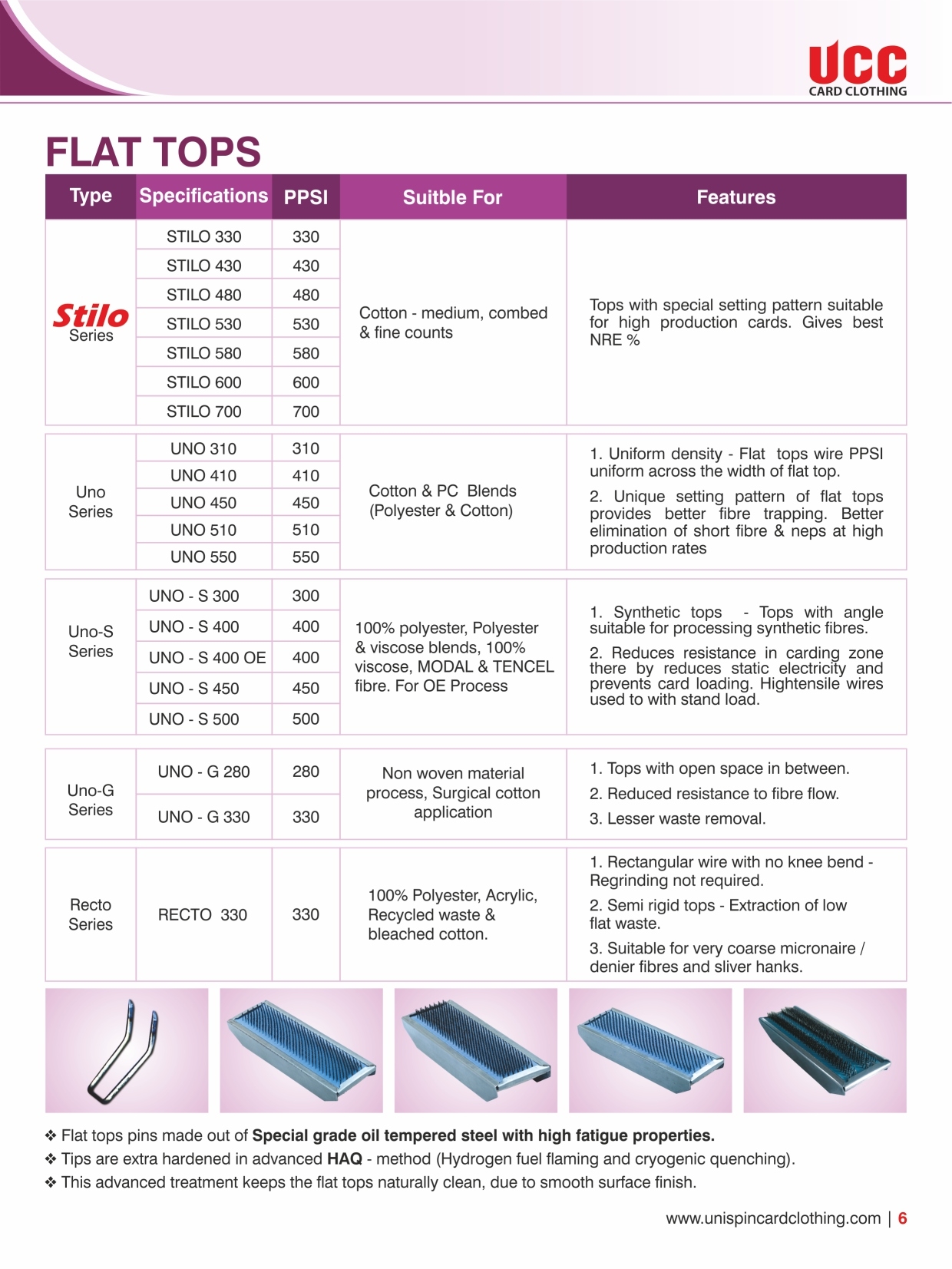

Type Specifications PPSI Suitble For Features
STILO 330 330 Cotton - medium, combed & fine counts Tops with special setting pattern suitable for high production cards. Gives best NRE % STILO 430 430 STILO 480 480 STILO 530 530 STILO 580 580 STILO 600 600 STILO 700 700 Uno Series UNO 310 310 Cotton & PC Blends (Polyester & Cotton) 1. Uniform density - Flat tops wire PPSI uniform across the width of at top.
2. Unique setting pattern of at tops provides better fibre trapping. Better elimination of short fibre & neps at high production rates.UNO 410 410 UNO 450 450 UNO 510 510 UNO 550 550 Uno-S Series UNO - S 300 300 100% polyester, Polyester & viscose blends, 100% viscose, MODAL &TENCEL fibre. For OE Process. 1. Synthetic tops - Tops with angle suitable for processing synthetic fibres.
2. Reduces resistance in carding zone there by reduces static electricity and prevents card loading. Hightensile wires used to with stand load.UNO - S 400 400 UNO - S 400 OE 400 UNO - S 450 450 UNO -S 500 500 Uno-G Series UNO - G 280 280 Non woven material process, Surgical cotton application 1. Tops with open space in between.
2. Reduced resistance to fibre ow.
3. Lesser waste removal.UNO - G 330 330 Recto Series RECTO 330 330 100% Polyester, Acrylic, Recycled waste & bleached cotton. 1. Rectangular wire with no knee bend - Regrinding not required.
2. Semi rigid tops - Extraction of low
at waste.
3. Suitable for very coarse micronaire / denier fibres and sliver hanks.
